download your HLG & MLG – Linear Guide Rail CAD Models
Load: up to 180kN for HLG and up to 10kN for MLG
Speeds: up to 1.5m/s
Low maintenance
Unlimited lengths
Long system life
Quiet and smooth running

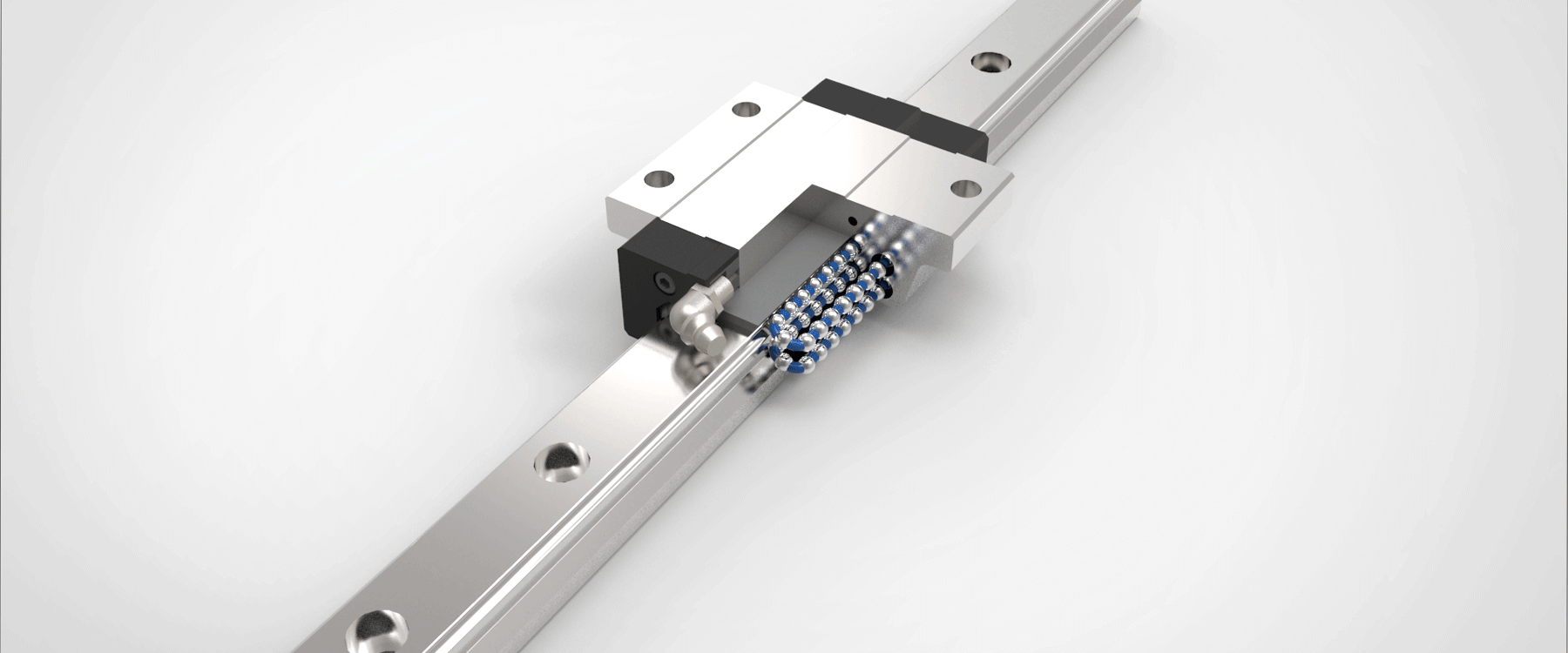

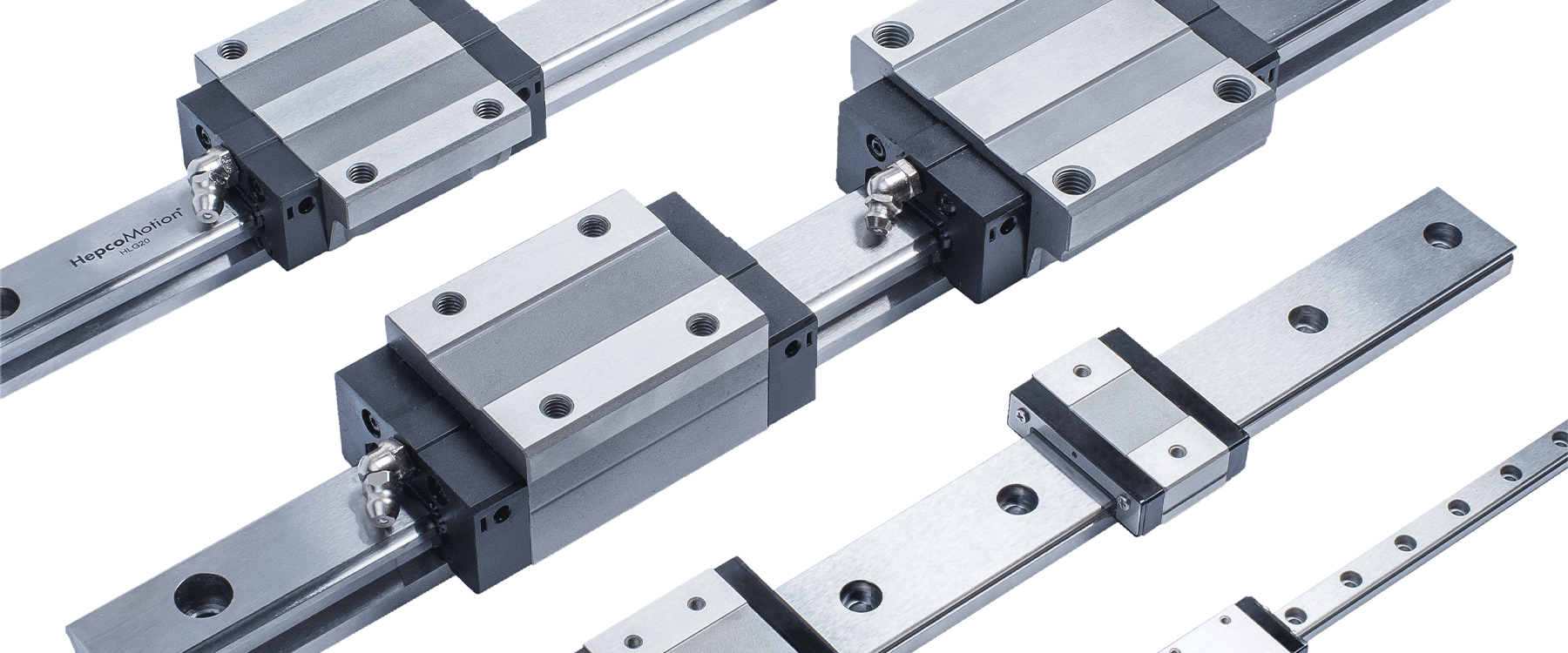

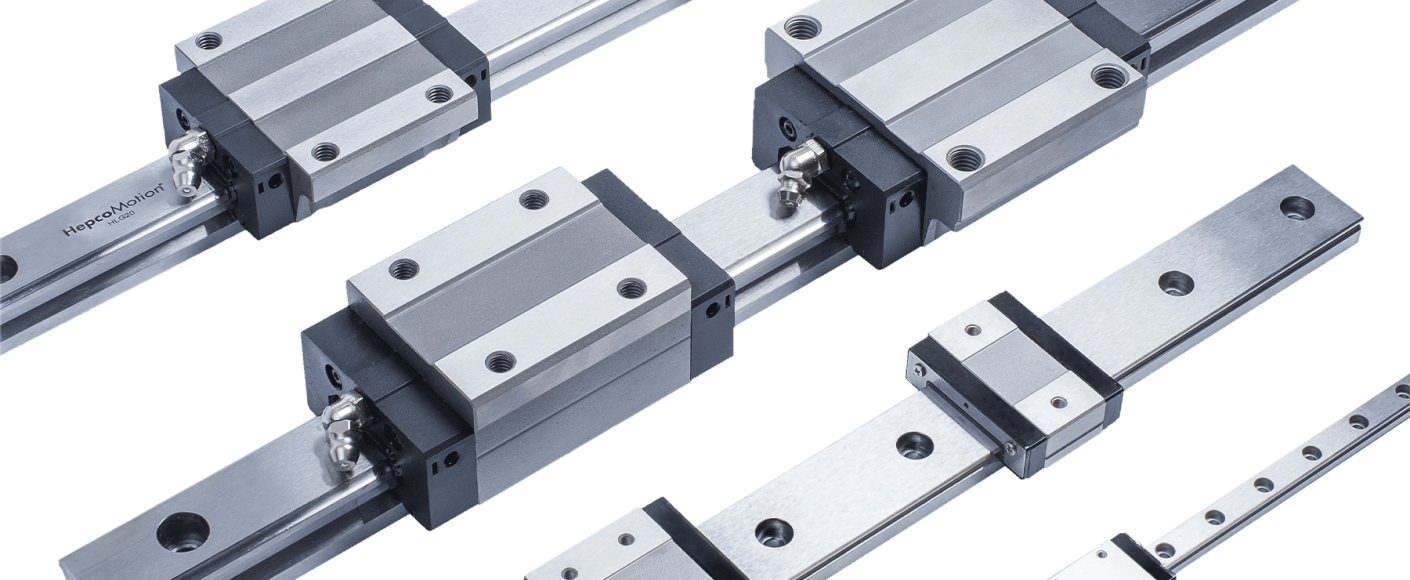

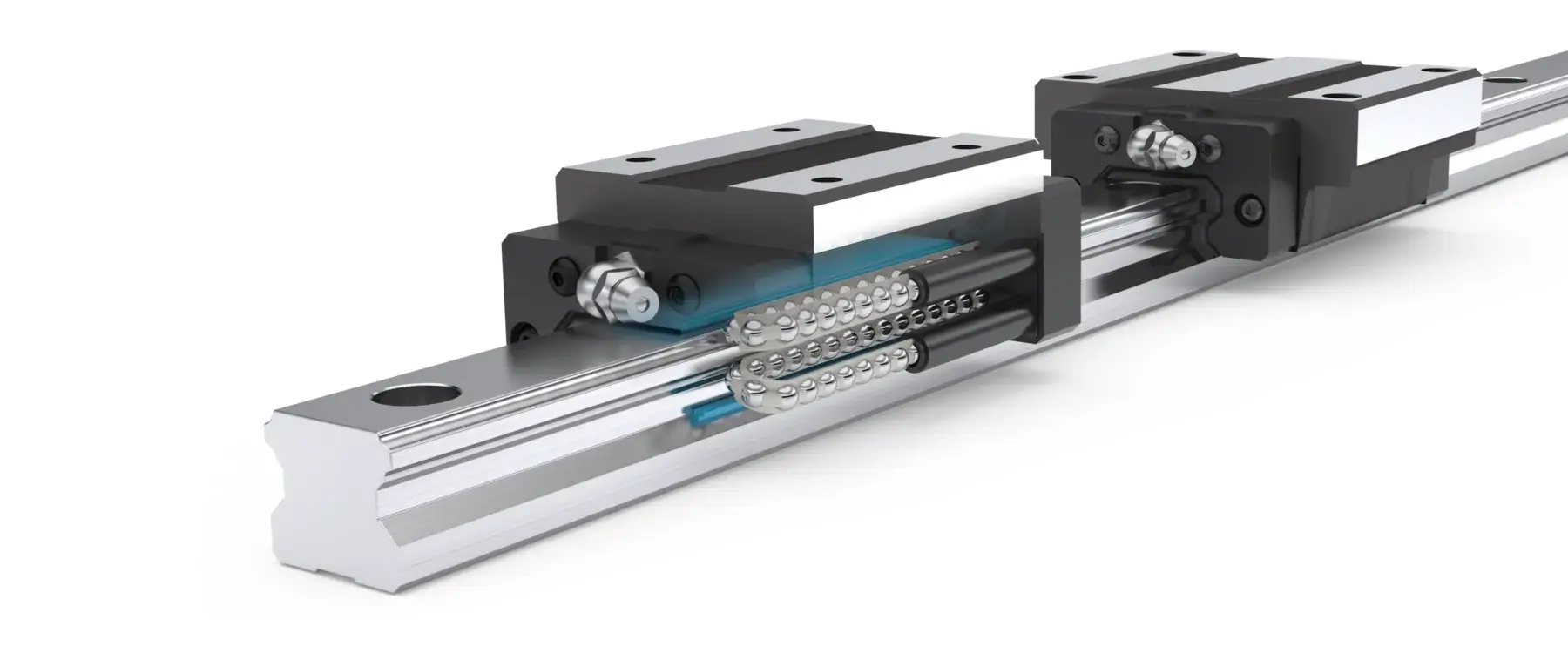

Recirculating linear guide rails from miniature to standard sizes, offering precision and quality at a competitive price.
Quick Delivery – HepcoMotion’s HLG (standard sizes) & MLG (miniature sizes) are both available from stock.

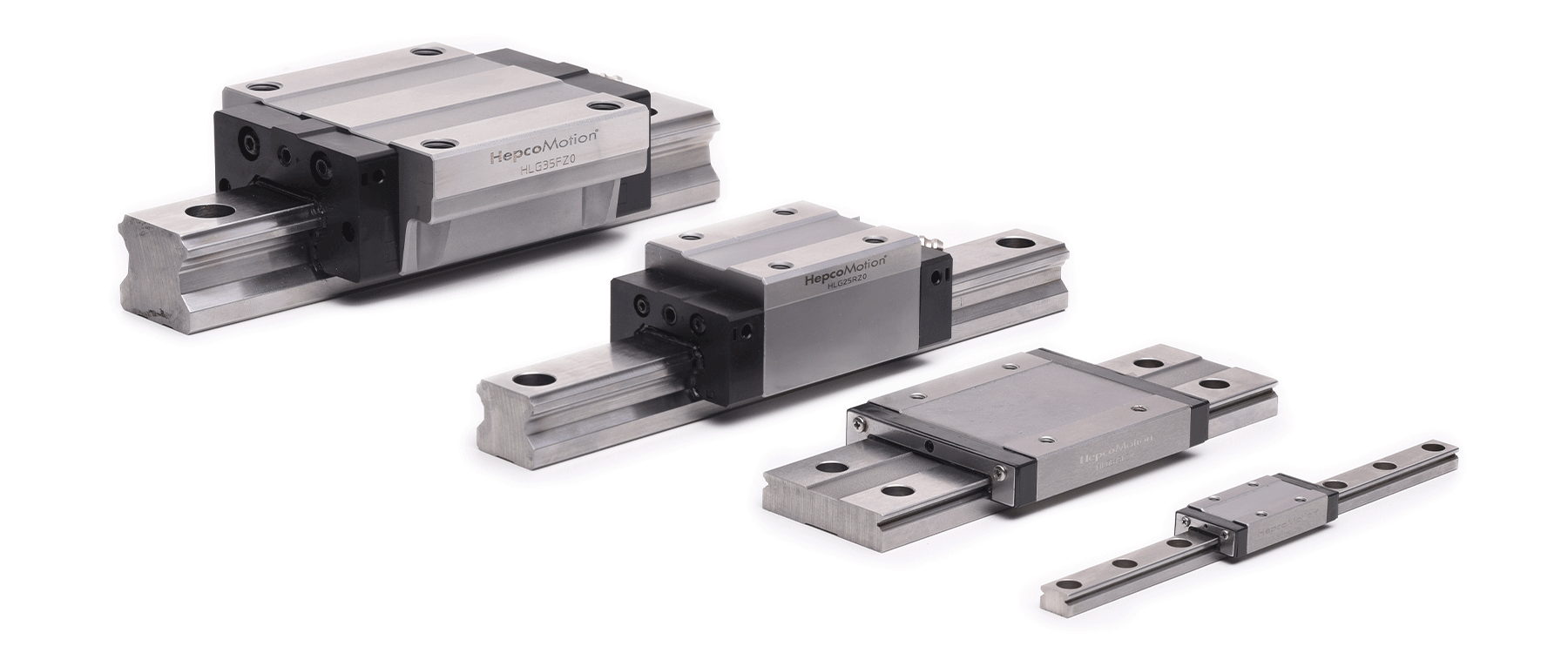

An extensive choice in sizes – Sizes range from 5mm to 20mm (MLG) and 15mm to 55mm (HLG) in European standard versions, providing greater choice and interchangeability.
A cost-effective solution – Precision and quality at competitive prices, HLG linear guide rails are suitable for many standard applications requiring accuracy and rigidity.
Ultra-smooth movement – Twin bearing track arrangement ensures smooth and rigid movement over the complete stroke length.

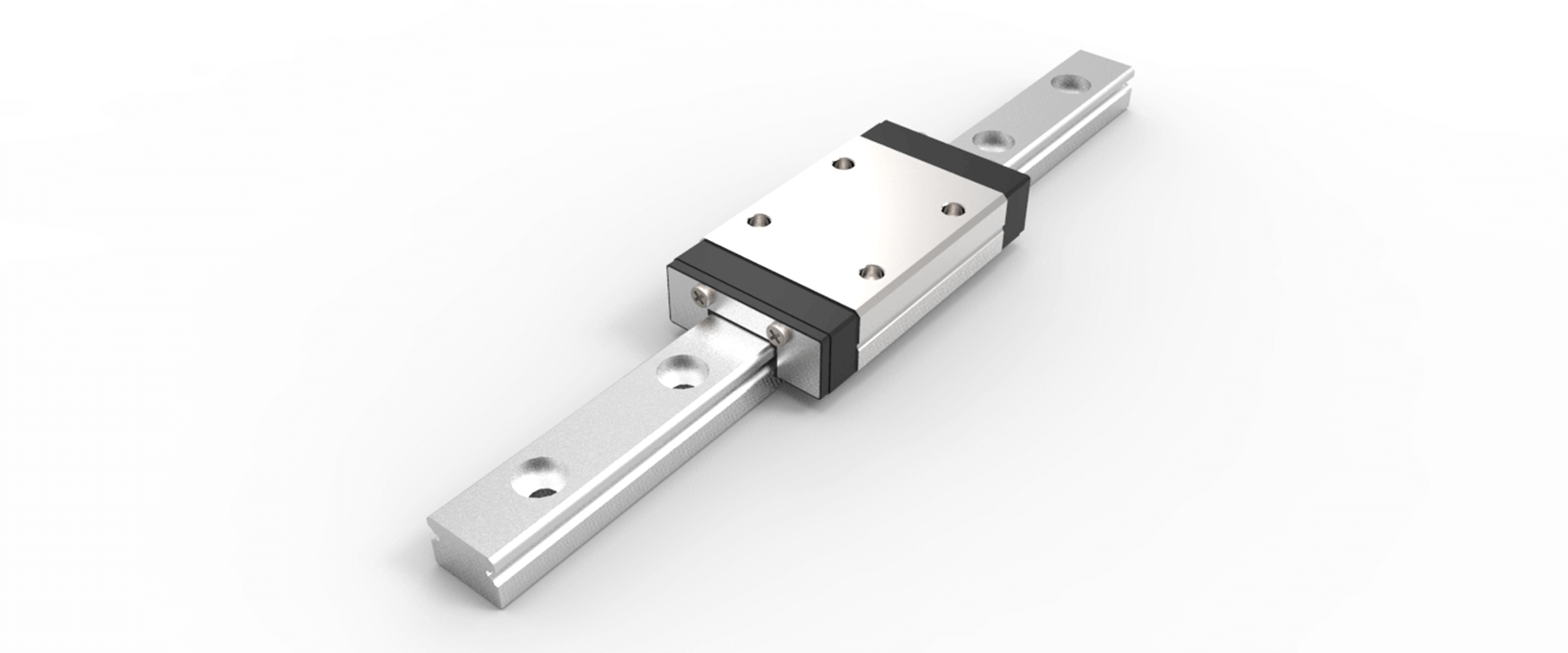

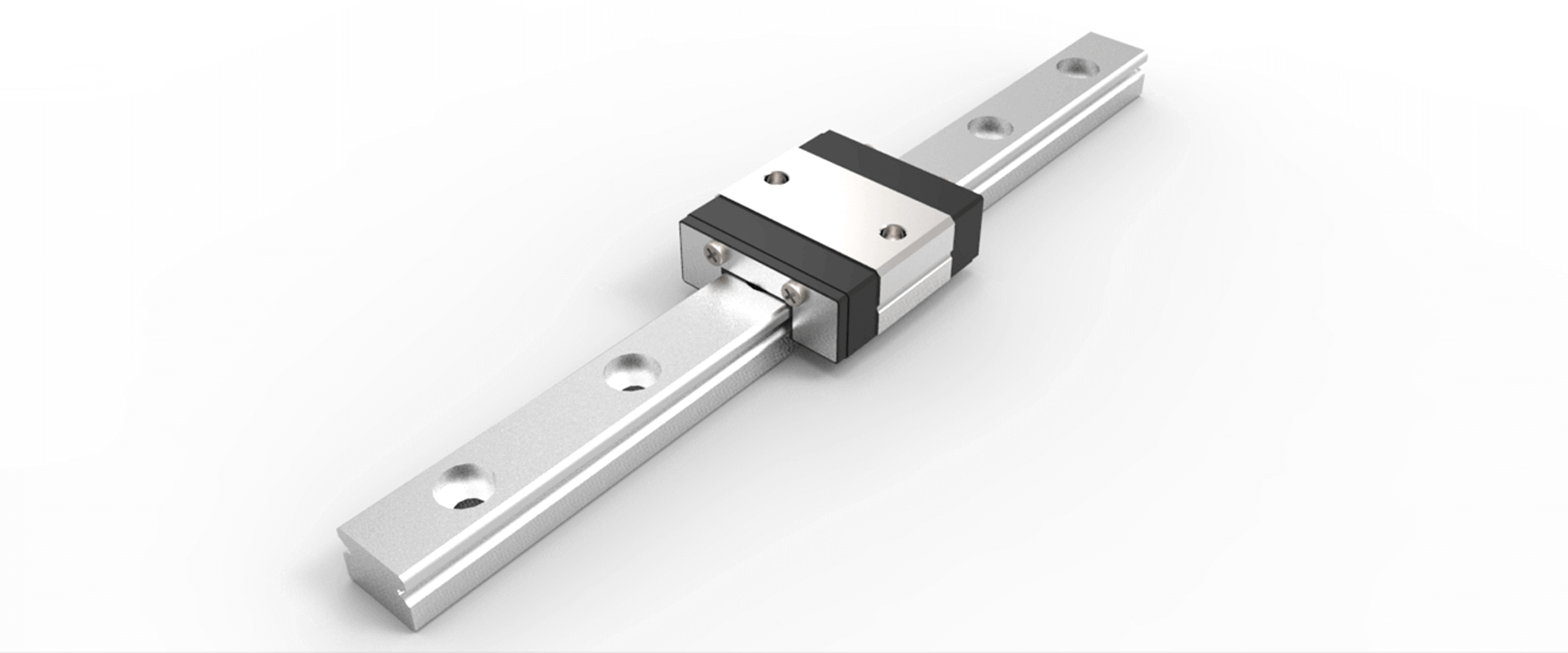

Small spaces – Hepco’s miniature MLG guide rails provide exceptional load capacity in a very small space; perfect for medical, scientific, and small mechanical assembly systems where high performance is demanded.
- MLG is manufactured in stainless steel with standard & wide rail options, making it suitable for clean rooms
- Integral all-round block sealing prevents dirt ingress and ensures grease is retained to lubricate the internal tracks
- Range of accuracy grades and preloads to suit all applications
- Load can be applied from all directions
- A bleed lubrication system re-greases the blocks through the rail, making it easy to set up an automatic lubrication facility.
Product Components
CAD drawing
Linear Motion Guide – Non Flanged
HLG-R
Slim Separator Linear Motion Guide – Non Flanged
HLGS-SC

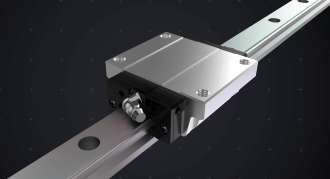

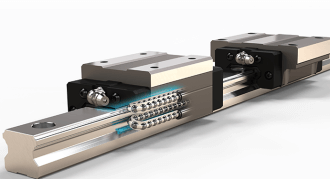

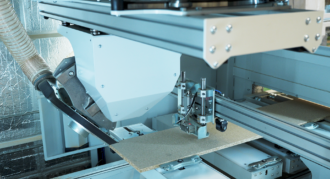

Related Videos
