Load: up to 28kN
Speeds: up to 0.5m/s
Low maintenance
Long system life
Quiet and smooth running

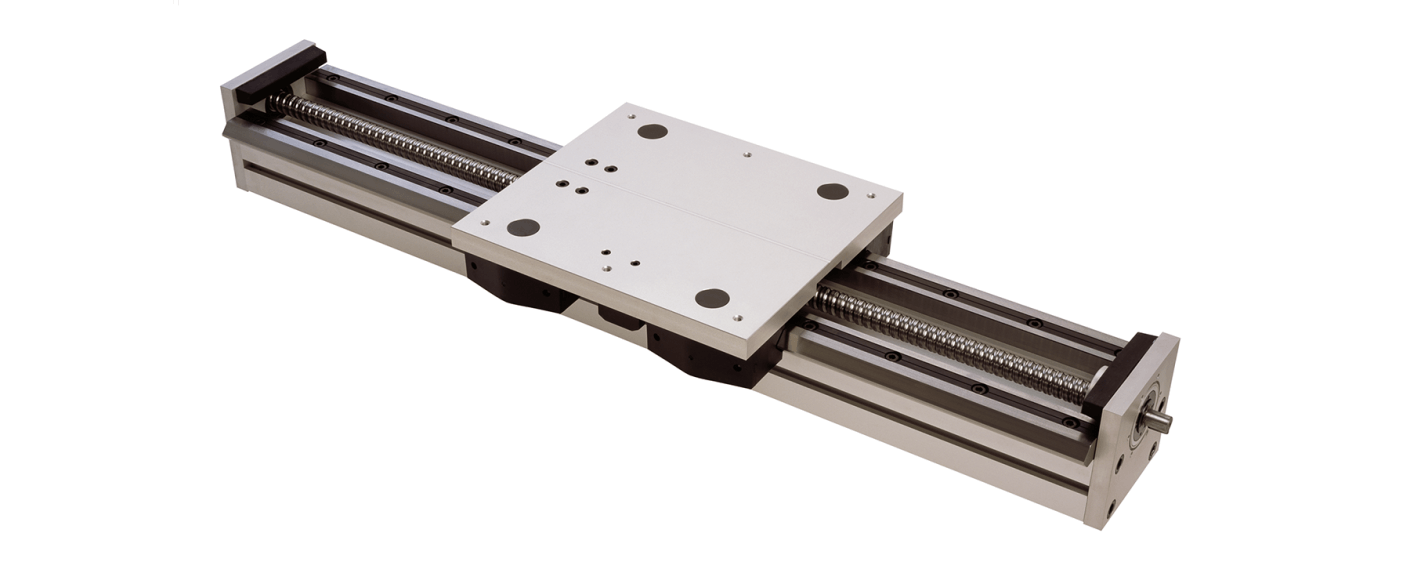

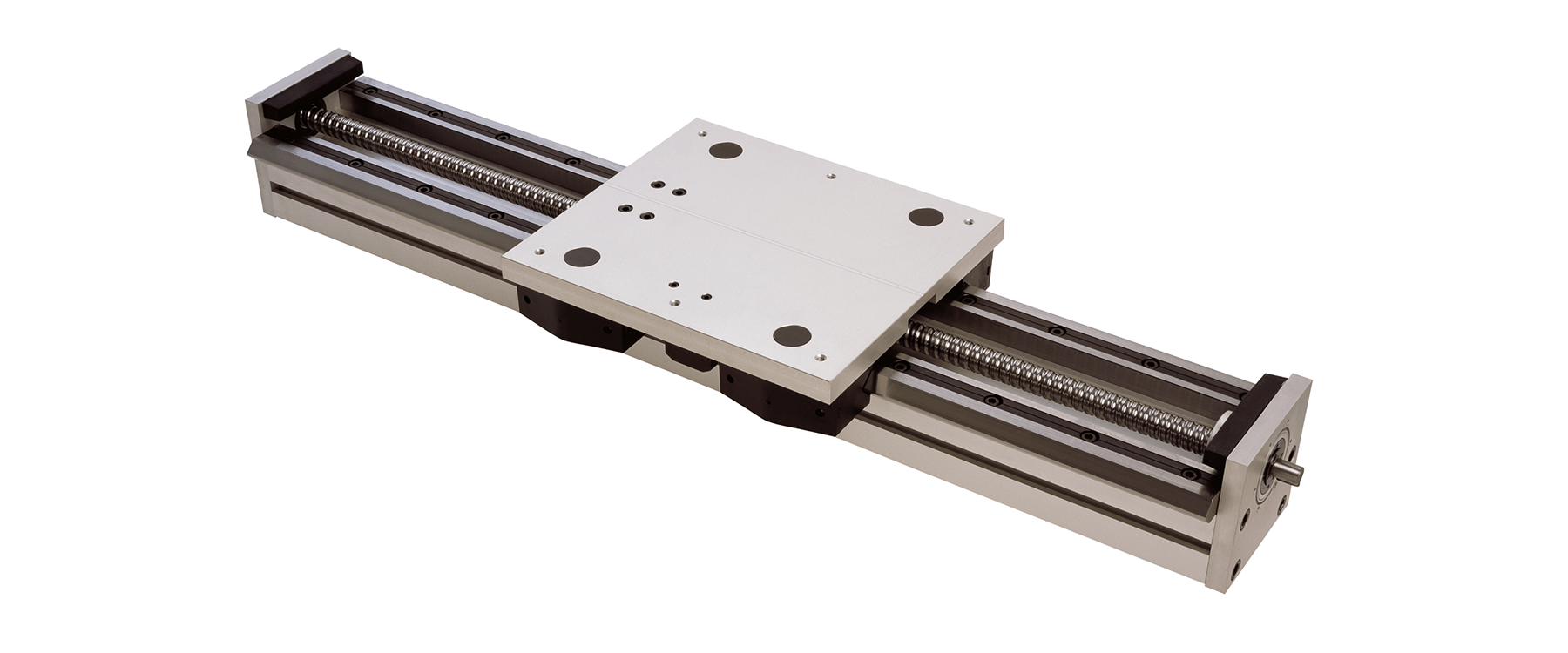

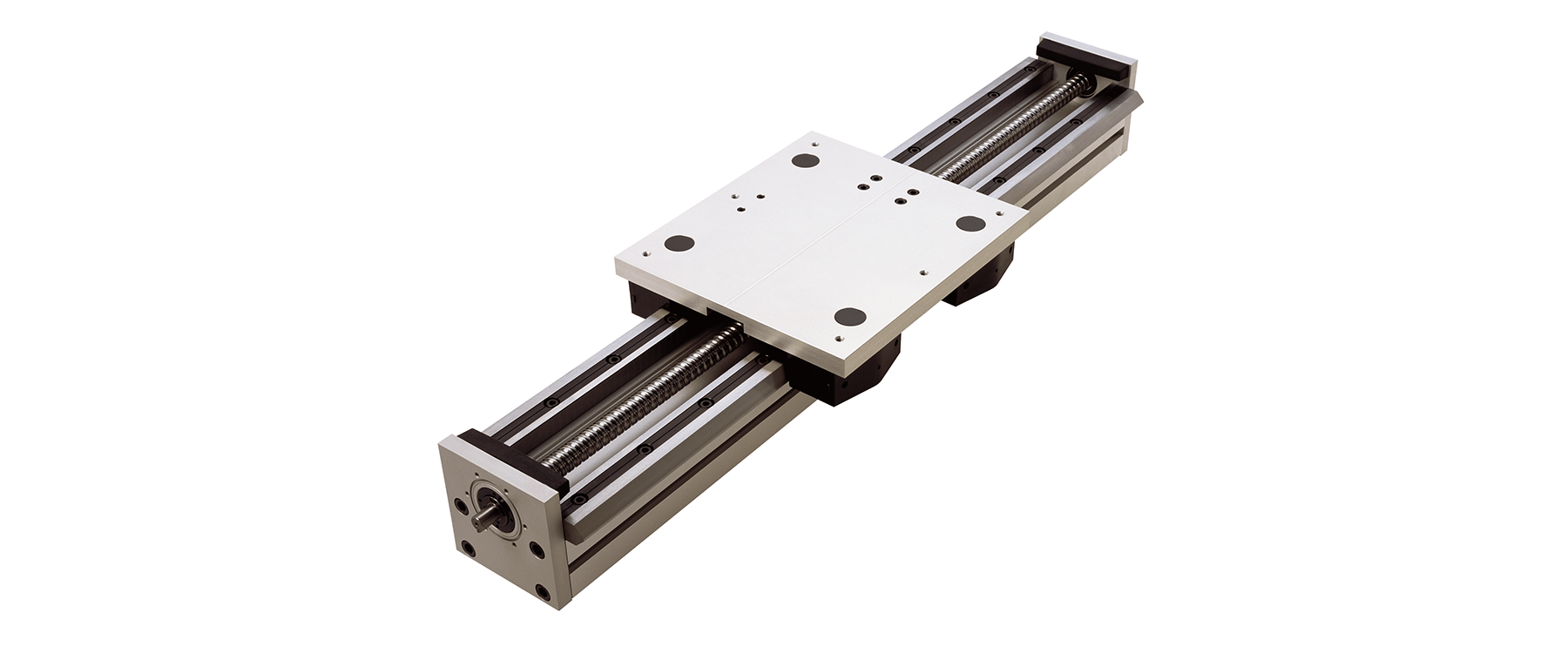

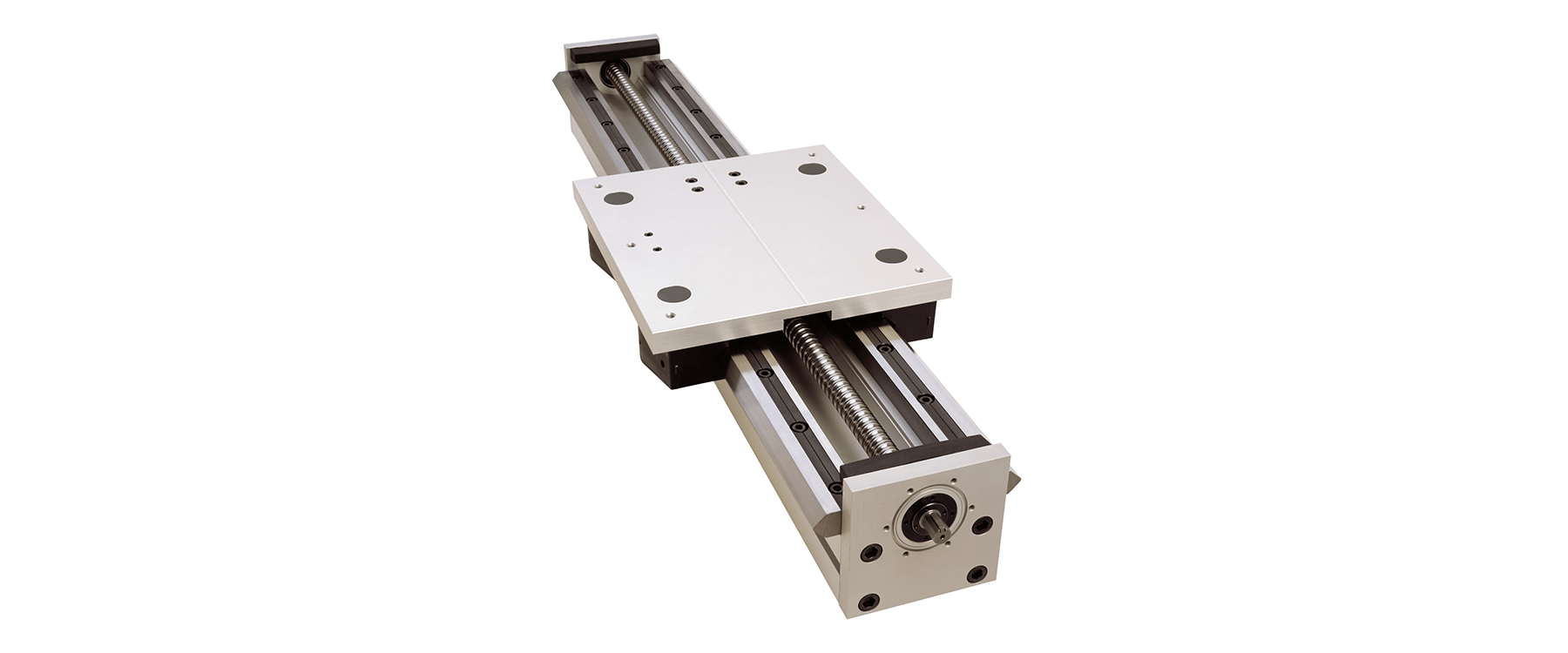

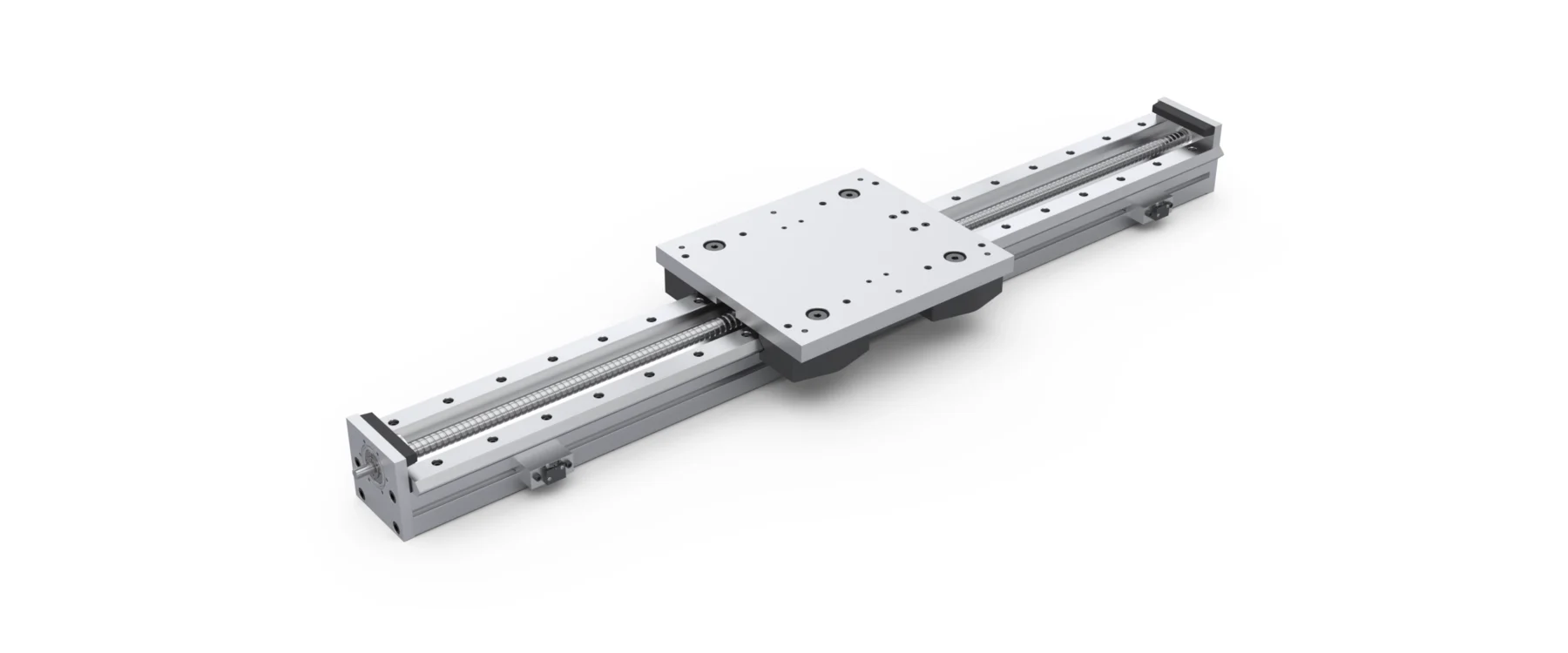

A heavy duty ball screw actuator designed for the precise actuation of high loads.
Built for high loads – Built using strong, yet compact aluminium beam sections, HDCS can transfer loads of up to 28kN.
Design flexibility – HDCS can be used as a standalone X-axis or as a Z-axis with either the beam, or carriage as the moving element. Optional bellows cover available to provide a high level of protection from dirt and debris. Grippers and tooling can be easily attached to the end plate.
Offers high accuracy and repeatability for heavy loads – Incorporating a zero-backlash ballscrew, HDCS provides high positional accuracy and repeatability; perfect for high load applications requiring consistent results.
Higher force capability – Thanks to the ball screw drive, HDCS is ideal for applications requiring higher linear force and rigidity.
- Lengths up to 2740 mm as standard
- Beam T-slots compatible with aluminium profile section for ease of mounting
- High capacity Ø 64 mm or Ø 95 mm bearings provides rigidity under load
- Low maintenance cap wipers for prolonged performance
- Choice of 5mm, or 10mm screw pitch to suit varying speed/load requirements
- Custom motor connection kit options available to suit your gearbox, or motor
